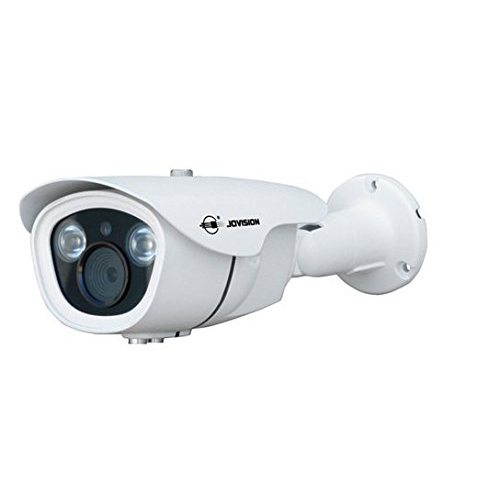

1.3MP Vari-Focal 2.8mm~12mm 960P Cloudsee HD IP Camera (JVS-N4FL-HT-V)
 "Pin It")
Jovision IPC Features:
1. Video resolution: 1.3MP.compression standard:H.264/JPEG.
2. Smart function:Defense Area,Trip Line.
3. IR cut filter with auto switch for day/night function.
4. Digital 3D DNR,Digital WDR,ROI,Defog,makes image clearer and more fluent.
5. Tri-streams for resolution,frame rate,video quality adjustment.
6. Support IP self-adaption function.
7. Support ONVIF protocol(2.4),compatible with other manufacturers products.
8. POE optional.
9. 2.8mm-12mm vari-focal
Scenarios:
Large warehouses, departments, docks, squares, schools, railway stations, parks etc.
1. Video resolution: 1.3MP.compression standard:H.264/JPEG.
2. Smart function:Defense Area,Trip Line.
3. IR cut filter with auto switch for day/night function.
4. Digital 3D DNR,Digital WDR,ROI,Defog,makes image clearer and more fluent.
5. Tri-streams for resolution,frame rate,video quality adjustment.
6. Support IP self-adaption function.
7. Support ONVIF protocol(2.4),compatible with other manufacturers products.
8. POE optional.
9. 2.8mm-12mm vari-focal
Scenarios:
Large warehouses, departments, docks, squares, schools, railway stations, parks etc.
| Model/Specification | JVS-N4FL-HT | |
| Camera | Image Sensor | 1/3″CMOS |
| Resolution | 1280×960 | |
| Pixels | 1.3MP | |
| Compression | H.264/JPEG | |
| Frame Rate | 25fps | |
| Bitrate | 204Kbps～6Mbps | |
| Synchronization | Internal | |
| SNR | 55.7dB | |
| Min Illumination | 0Lux(IR ON) | |
| Lens | Lens Mount | CS |
| Lens | 2.8mm～12mm | |
| Viewing Angle | 2.8mm:117°，12mm:28° | |
| Focus Control | Manual | |
| Function | Exposure Mode | Auto |
| Gain Control | Auto | |
| White Balance | Auto | |
| Digital noise reduction | 3D DNR | |
| OSD | Support | |
| Network TimeSyn | Support | |
| QR Code | Support generate device qr code for scanning to add |
|
| Scheduled Restart | Support | |
| ROI | Support | |
| IR Sensitivity | Adjustable | |
| Defog | Support | |
| Privacy Mask | Support 4 rectangle areas | |
| Motion Detection | Support | |
| Video Adjust | Supports contrast, brightness, saturation, sharpness adjustment |
|
| Scene | Support Indoor、Outdoor、Default、 Soft scenes |
|
| Day & Night | IR cut filter with auto switch， Support Color to Black |
|
| Electronic screen | Supprot Exposure time setting, solve view electronic screen problem |
|
| Night Self-Adaption | Support | |
| Wide Dynamic Range | Digital WDR | |
| Image setting | Mirror、Rotate | |
| IP Self-Adaption | Support | |
| Alarm | E-mail、Client | |
| Remote Operation | System、Stream、User、Network Management | |
| External Interface | Support Audio Input | |
| Network | Ethernet | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Tri-Stream | Supprot | |
| Protocol | Support HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP, SMTP,FTP,DHCP,DNS,PPPOE |
|
| System Compatibility | ONVIF 2.4 | |
| Transmission | Internal Cloudsee Protocol | |
| Browser | IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers | |
| Connection | 32CH | |
| User Permission | Up to 13 users，Three level authority： Administrator、User、Visitor |
|
| General | Infrared Lamp | 2 Lattice Lamps |
| IR Distance | 20m～70m | |
| Power Supply | DC 12V | |
| PoE Power | Optional | |
| Working Temperature | -20℃～+55℃ | |
| Working Humidity | 10%～90% | |
| Power | Day：＜3W Night：＜6W | |
| Material | Aluminum | |
| Size((W×H×D)（mm） | 108.4×89.9×268.7 | |
| Weight（g） | 660g | |
| Installation | Rack Mounting | |
